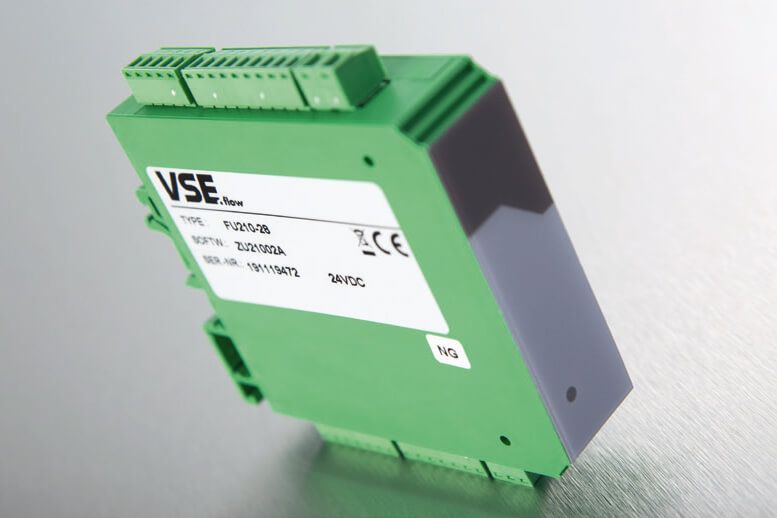

FU210-28 signal converter

The FU210-28 is the functionally compatible and more powerful successor unit of our proven signal converter FU252-28.

·  Operating modes as frequency converter or pulse counter

·  Universal pulse inputs HTL/TTL/RS422

·  Functions such as linkages (e.g. A+B), scaling, filters, start-up bridging, etc.

·  Input frequency up to 200 kHz

·  16 bit analogue output, configurable for voltage or current operation (±10 V, 0/4 ... 20 mA)

·  RS232/RS485 interface and Modbus interface for configuration and serial readout

·  Extremely short conversion times

·  Linearization with 24 control points

·  Auxiliary voltage output 5 and 24 VDC for sensor supply

·  6 control inputs and 6 control outputs

·  Voltage supply 18 ... 30 VDC

·  Compact rail housing according to EN60715

·  Easy parameterization via user interface EASYLOADER or OS 6.0
