PRO Series 666
Air operated Diaphragm (AOD) pumps from US company Ingersoll-Rand. PRO series is ideal for general industrial use and for OEM clients where is press on price but with quality product. PRO series pumps has some technology from EXPERT series but not all. Quality and wide variety of materials offering to customers use these pumps for pumping chemicals, oils, abrassive fluids, viscozity fluids, etc.. Most of pumps are certificated for ATEX (CE Ex11 2GD X) and with FDA for food industry.
Pro serie Specifications:
- Maximum flowrate is 1040 litres/minute, pressure 8,3 bar.
- Self suction and dry run possibility ( without fluid ) without failure.
- Maximum pumping viscosity is around 10 000 mPa.s and maximum solid particles 9,5 mm.
- Unballanced valve provide stall free operation. Large port orientation options for OEM use.
PRO Serie Parameters:
Models: 8
Max Fluid disch. pressure: 8,3 BAR
Max Flow: 897 litres/minute
Max Viscozity: 15000 mPa.s
Wide variety material combinations:
- Wet body: aluminium, stainless steel, cast iron, polypropylene (PP)
- Diaphragm and valves: Santoprene, Nitrile, Hytrel, Neoprene, Viton, PTFE, PU
| Model | Size connection | Wet end | Max. flow (lts/min) | Max. pressure (bar) | Solids up to (mm) | Datasheet | MANUAL |
|---|---|---|---|---|---|---|---|
|
66605 |
½“ |
Plastic | 49,2 | 6,9 | 2,4 | 66605 | 66605P_M |
|

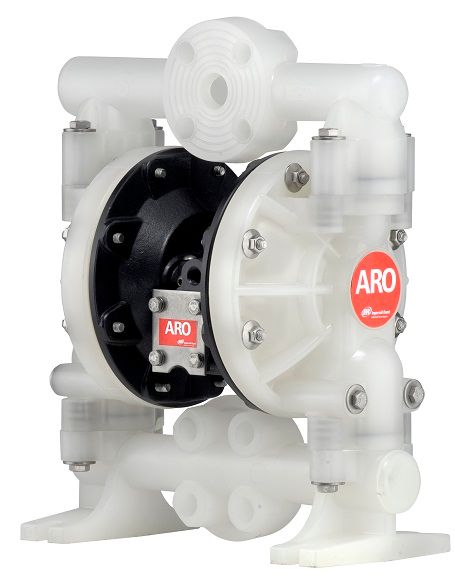

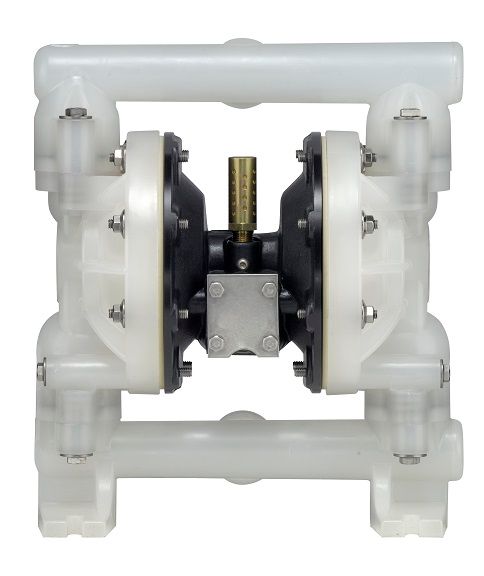

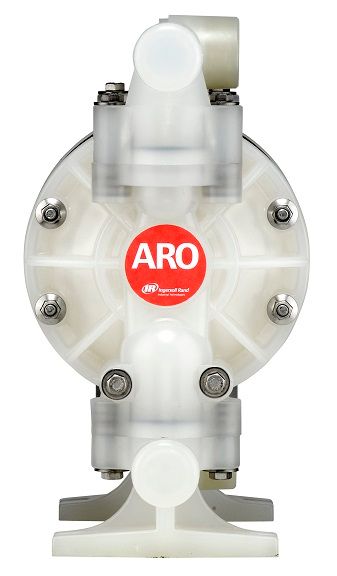

6661A(B) |
1“ |
Plastic | 178 | 8,3 | 3,2 | 6661A | 6661AP_M |
|

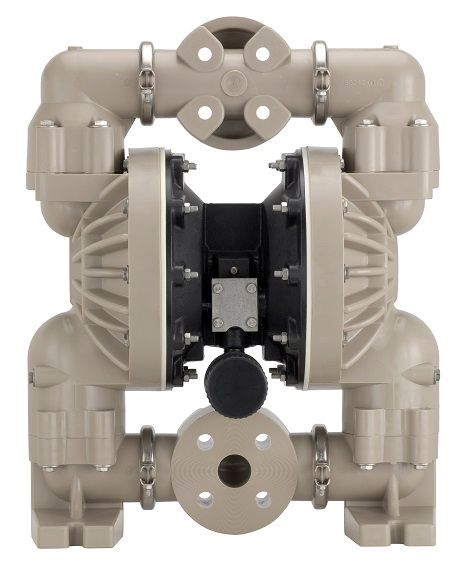

6661T(U) |
1 ½“ |
Plastic | 378 | 8,3 | 6,4 | 6661T | 6661TP_M |
|

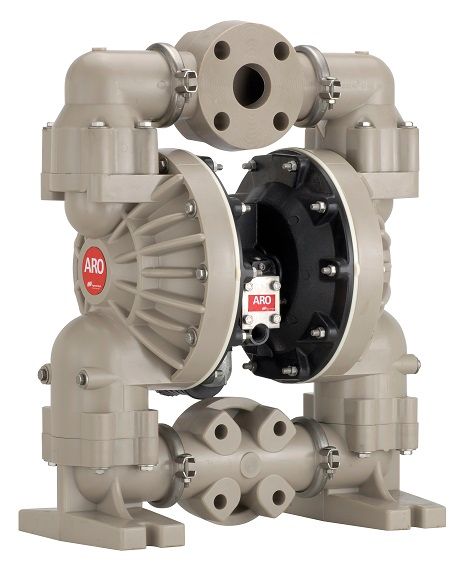

6662A(B) |
2“ |
Plastic | 549 | 8,3 | 6,4 | 6662A | 6662AP_M |
|
66610 |
1“ |

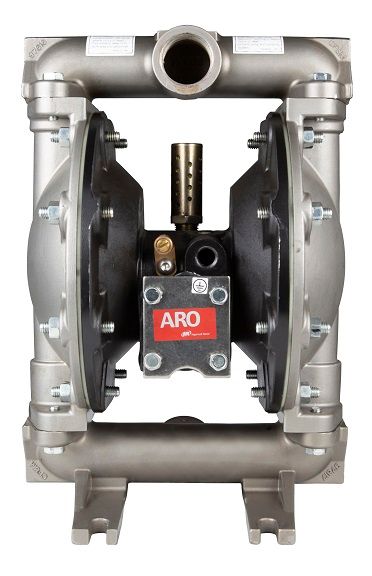

Metallic | 133 | 8,3 | 3,2 | 66610 | 66610P_M |
|
66615 |
1 ½“ |

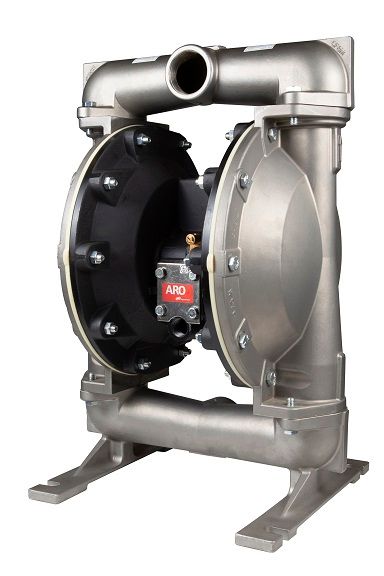

Metallic | 340 | 8,3 | 6,4 | 66615 | 66615P_M |
|

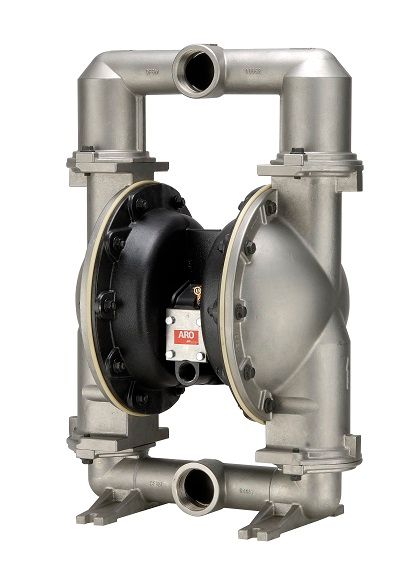

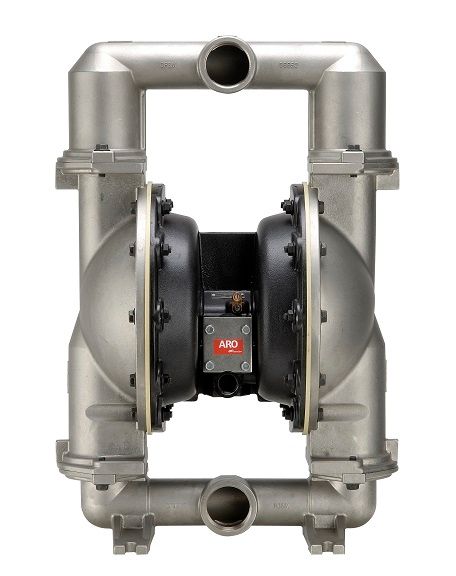

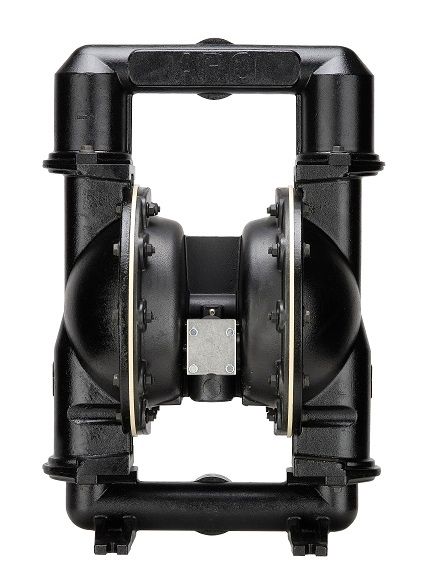

6662X |
2“ | Metallic | 651 | 8,3 | 6,4 | 6662X | 6662XP_M |
|

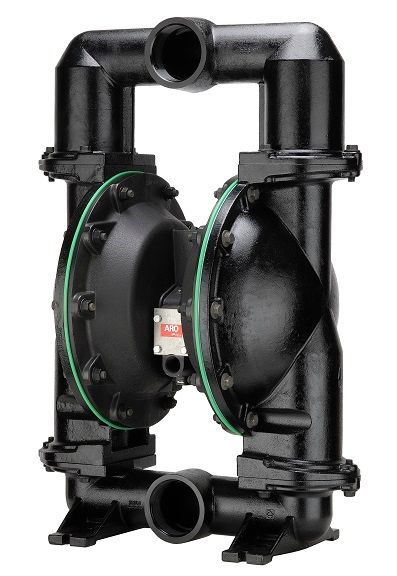

6663X |
3“ | Metallic | 897 | 8,3 | 9,5 | 6663X | 6663XP_M |
COMMON MODELS:
- 666053-3EB
- 666053-344
- 666053-0D2

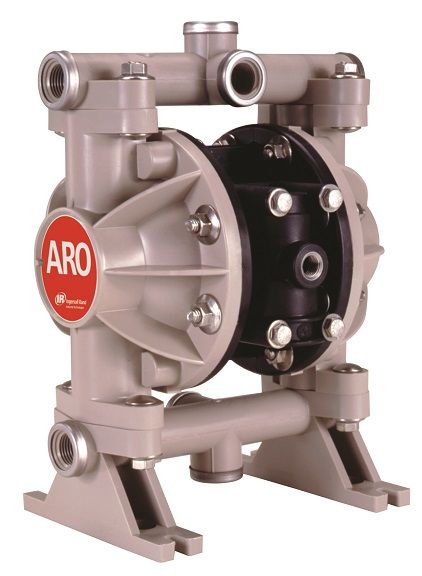

- 66605J-3EB
- 666120-244-C
- 666120-344-C
